The GOLDCOVER System allowes you to hot print stamp & emboss on variety of products. Create not only the personal matrix, but compose the text as well. Express yourself communicate with your customer or close friend!
Heavy duty press module together with a heater transfers coloured foils through matrix or fonts onto many kinds of materials. We recommend OPUS Hard Covers of METALBIND or C-BIND systems.
The perfect equipment and finish for your documents! Master theses, bachelor theses, doctoral dissertations, diplomas, albums, chronicles, books, congratulatory letters, menus etc.

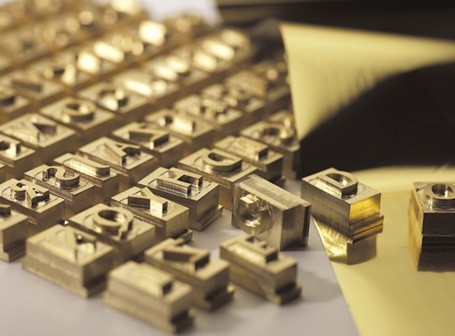

Fonts are made out of brass and are offered in MASTER SETS in specified language (e.g. en, de, fr, es etc.), font typeface (e.g. Standard, Serif, Serif Italic, Block) and size: 4 mm / 5.5 mm / 16 mm. Font sets include lowercase and CAPITAL letters.
Check out our list of font typefaces. To view PDF file you need reading software e.g. Adobe Acrobat Reader.
Single or multi-line frames for text composed out of O.FONT letters.
OPUS offers you 5 standard font sizes:
ADDITIONAL INFO:

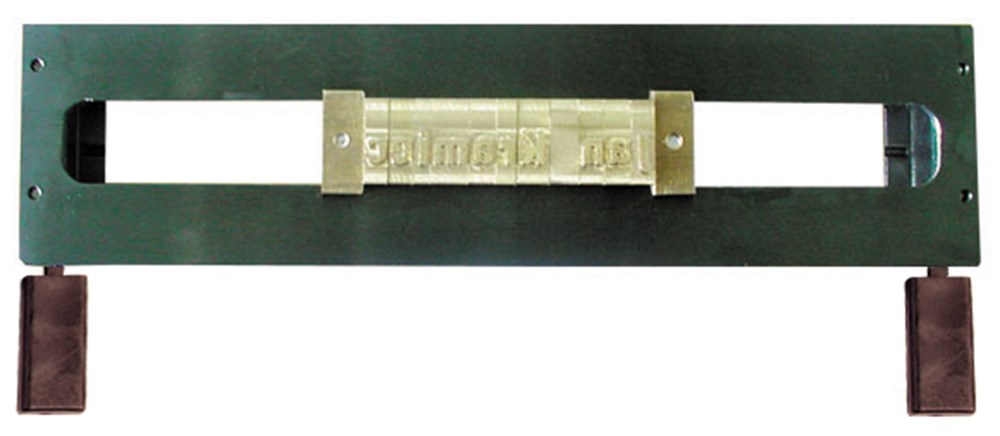

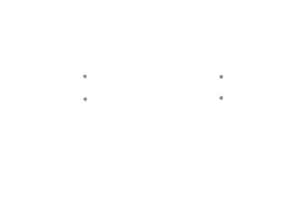

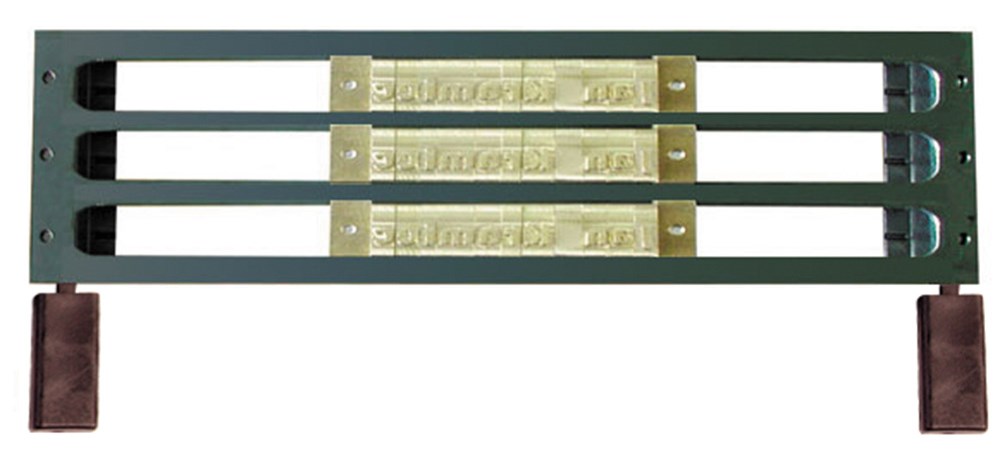

GOLDCOVER – Frames for Goldpress 4+ and Imagepress equipment
Heater size in Goldpress 4+ and Imagepress equipment are exactly the same (180 × 50 mm) thats why frames are also the same.
Depending on your needs, you can choose the following types of frames: Frames for fonts:
GOLDCOVER – Frames for Goldpress 5 and Masterpress 02 equipment

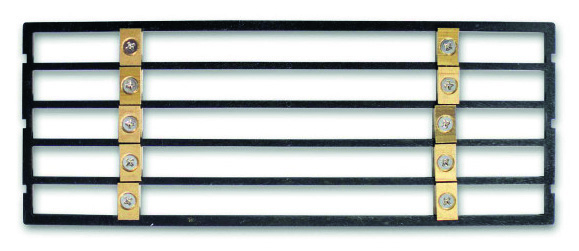

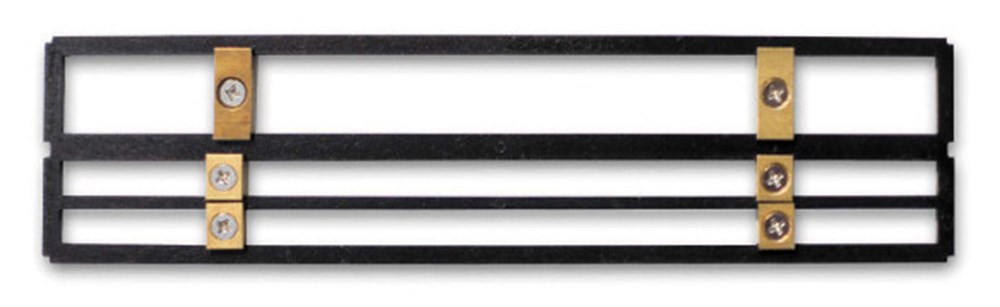

The Goldpress 5 and Masterpress 02 equipment use an innovative system using interchangeable frames. Together with the device, you receive the so-called main frame (O.MASTER FRAME) in which you place the selected inner frame with lines, then you place the font in this frame.
Depending on your needs, you can choose the following types of frames: Frames for fonts:
GOLDCOVER – Frames for Masterpress (without Masterpress 02) equipment

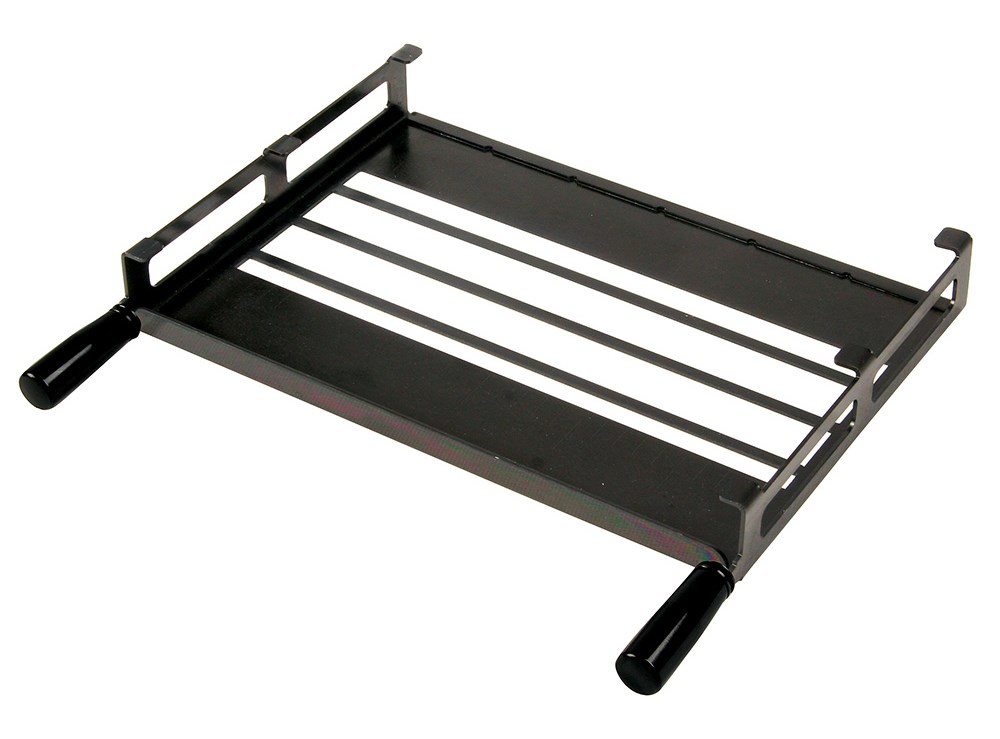

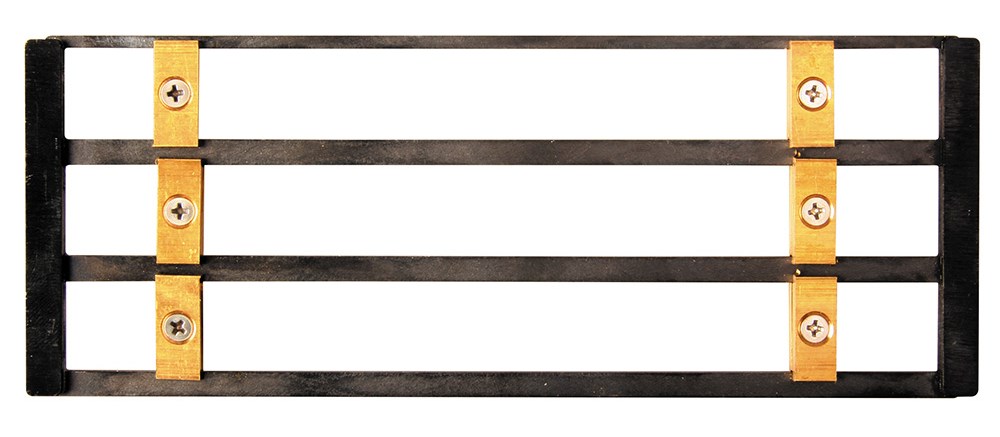

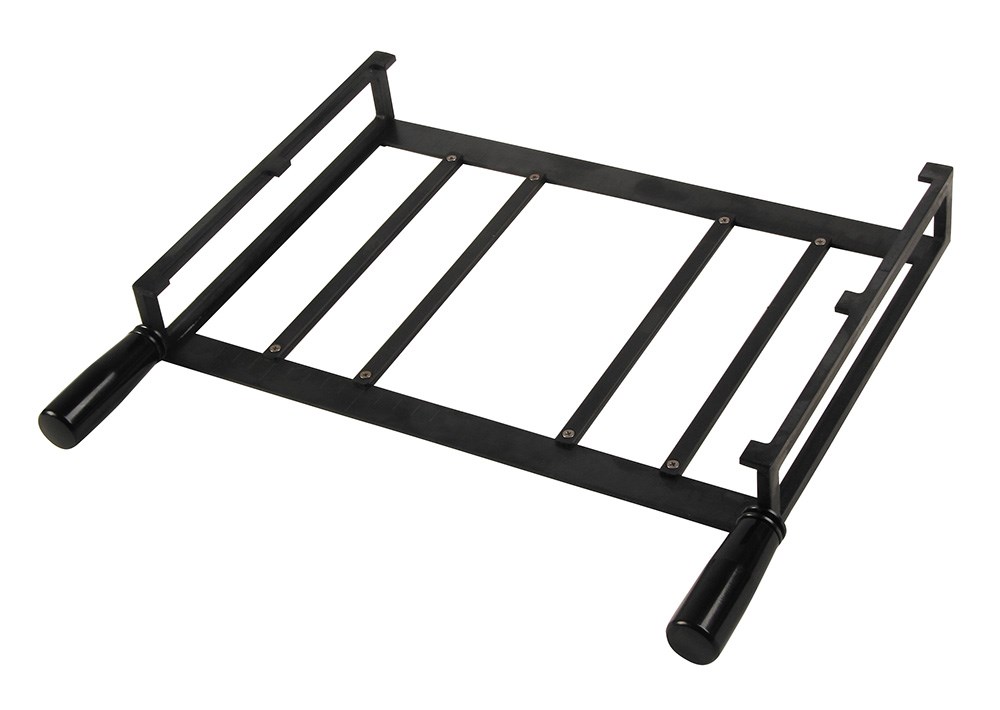

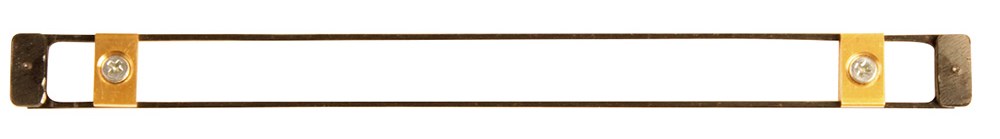

In the Masterpress (without Masterpress 02) equipment we use the most complex system allowing for the most accurate arrangement of fonts in frames. Together with the device, you receive main frame (O.MASTER FRAME MP) in which you can place the selected internal single-line frame (O.SINGLE FRAME MPE/ MP01) or multi-line frame (O.FRAME MPE/ MP01), then you arrange the fonts in frame.
Depending on your needs, you can choose the following types of internal single-line frames:
or multi-line frames:
Master Sets are stored in containers: O.FONT CONTAINER (universal container for all language version) or O.NATIONAL FONT CONTAINER (container for specified, national language - en, de etc.).
|

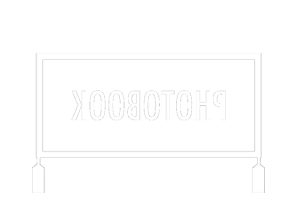

Premade matrix  Matrixes made of brass with predefined design e.g. "PHOTOBOOK" sign. |
Custom made matrix  OPUS offers a full serivce, design and manufacture with your design ready to fit your OPUS equipment. Now you are ready to hot print stamp your professional image. |

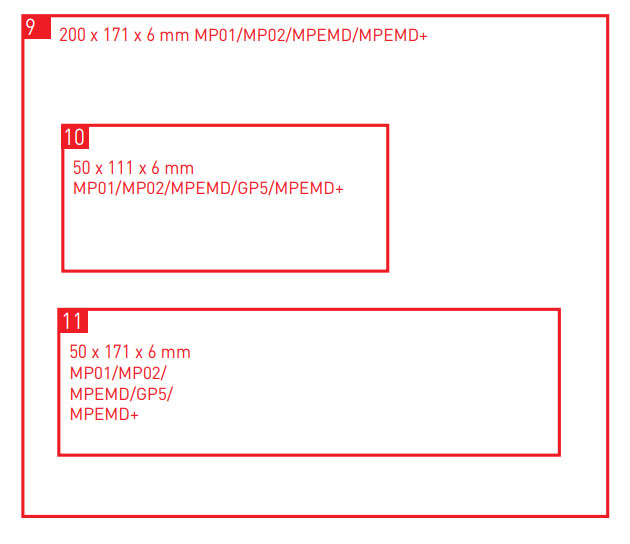

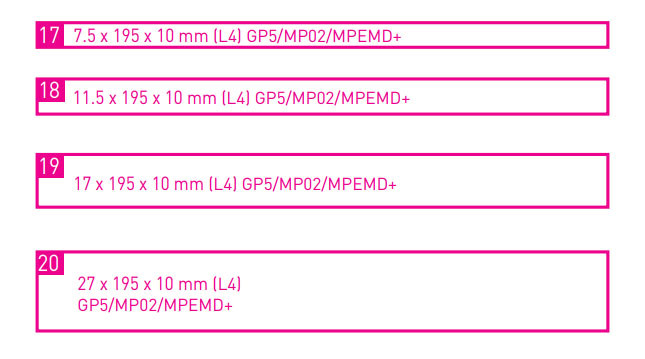

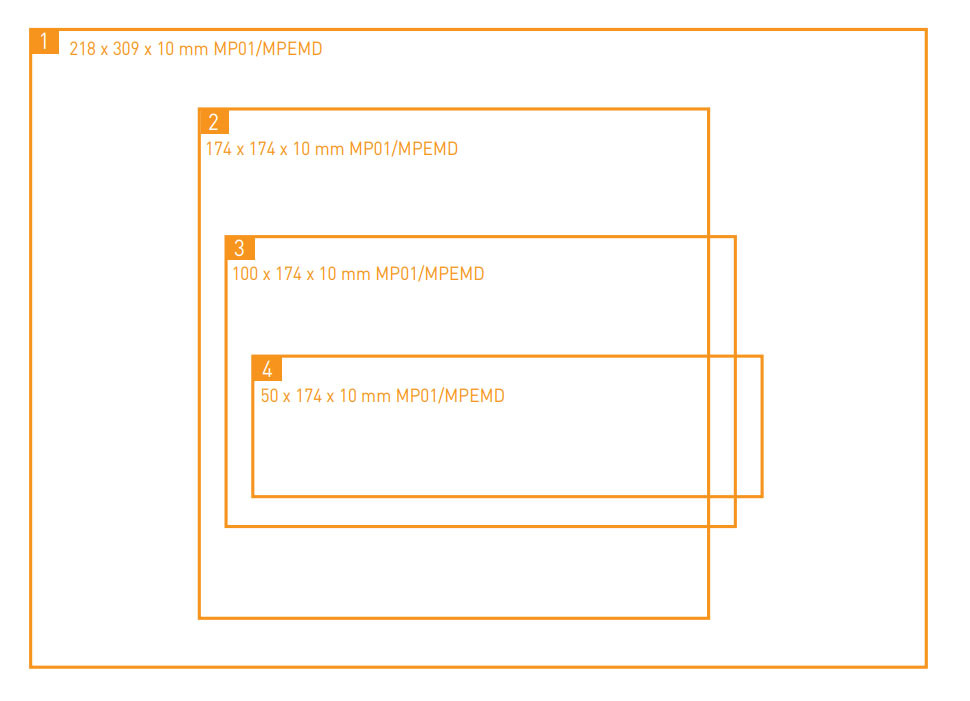

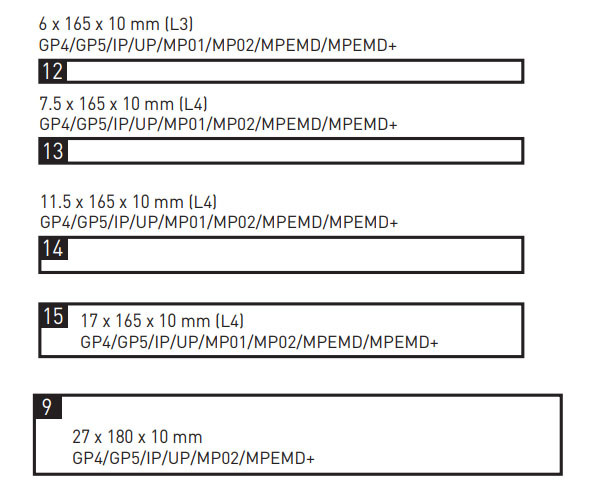

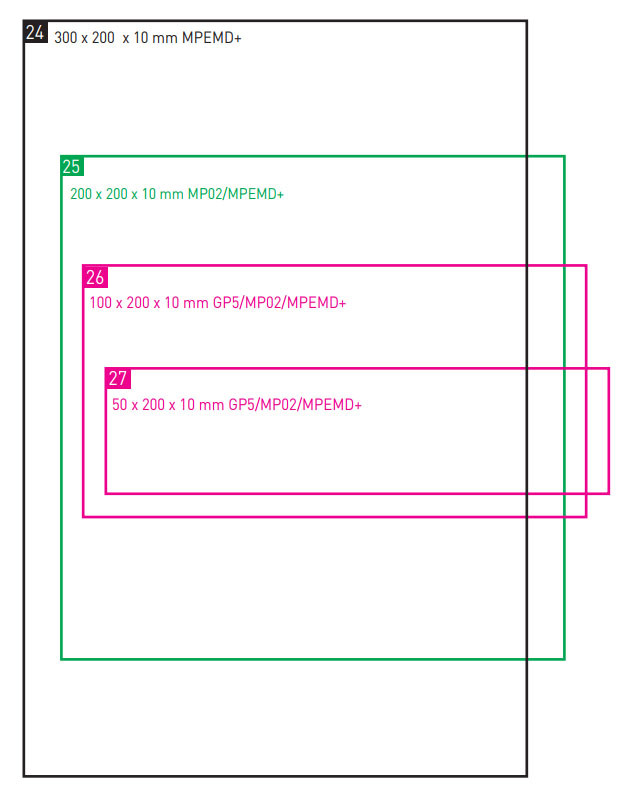

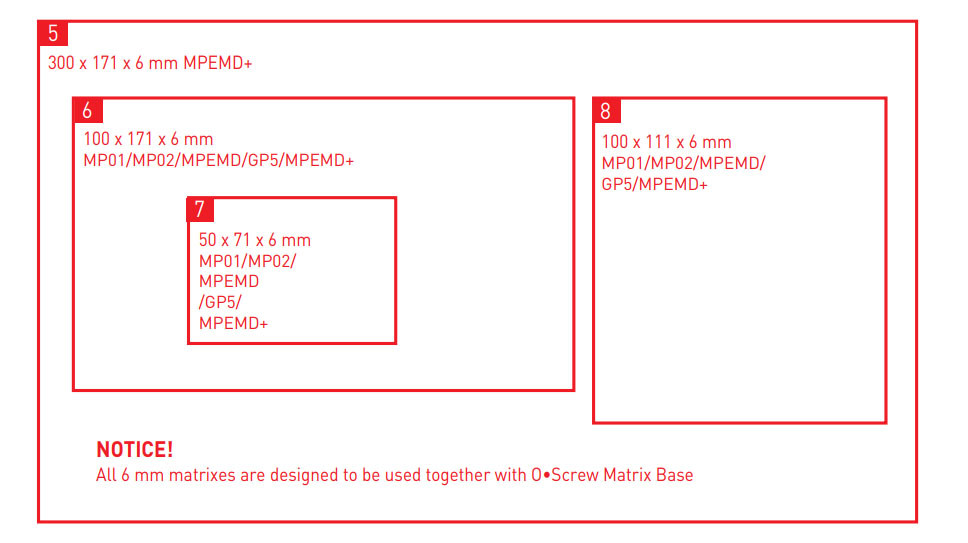

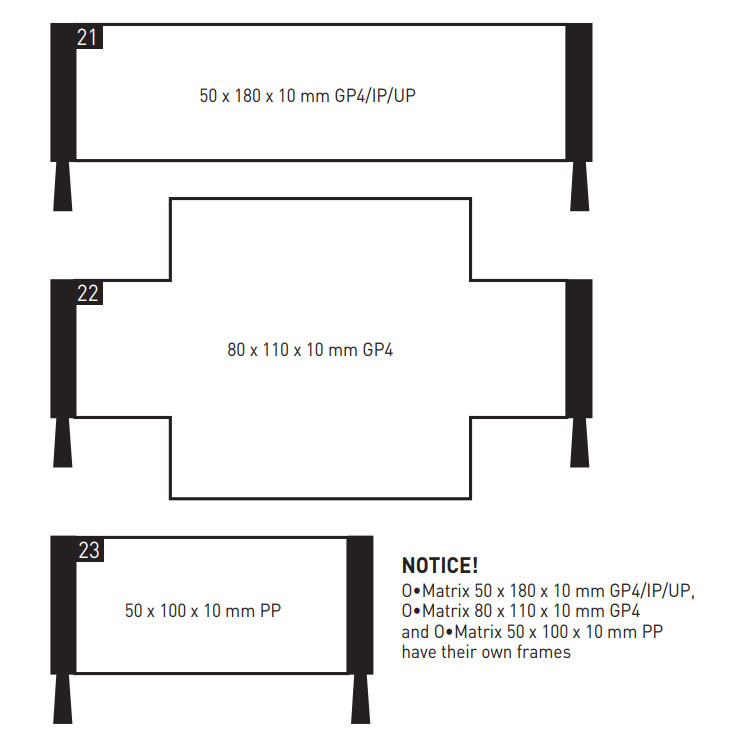

Choose from the list below the size of matrix block you would like to have for your logo. Ensure that it will fit on your heating element and you have the correct O•Matrix frame for your equipment. There are several kinds of matrix block sizes to choose in our stock items. Some matrix blocks need a special frame (O•Matrix Frame) or special plate (O•Matrix Base or O•Screw Matrix Base). Please ask your dealer for help if in doubt.
Remember that the length and width of your hot print stamping area should be at least 1 mm smaller all around than the size of the O•Matrix. We also recommend that the total area of a single printing block does not exceed 20 cm². We cannot guarantee that you will have a professional or satisfactory result on a larger print area.

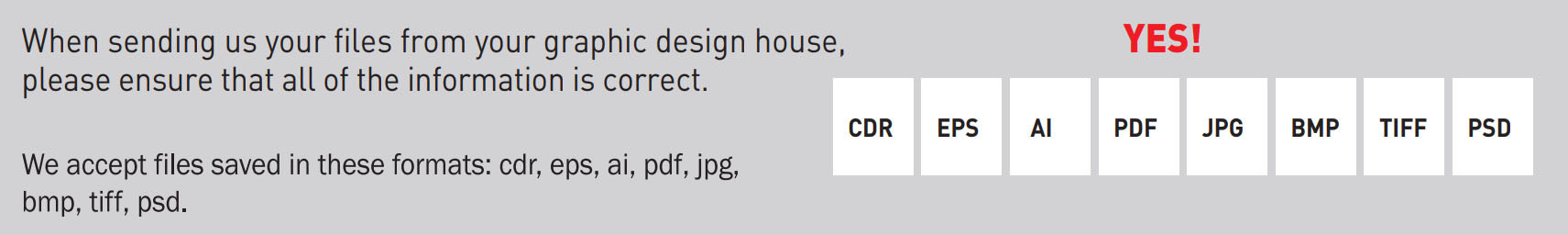

For our CNC engraver equipment to give the best resoults, the design needs to be in curves i.e. (.cdr, .eps, .ai, .pdf) or the higest resolution of pixrls, 300 dpi or more (.psd, .jpg, .tiff, .bmp) Designs with many details but low resolution will need more time to bring them to the standards required, wich will incur a cost.
Alternatively you can send your design to us and we will give you a quote for our design team to create the files needet to complete your project.
Special foil in rolls for hot print stamping on covers and channels. Available colours: gold, silver, white, black, blue, green. Formats: 18 cm x 122 m and 21 cm x 122 m (for Masterpress series).
Foil for gilding on roll
Versatile hot print stamping foil in a roll - O.FOIL UNIVERSAL - 122 m
Foil for gilding on roll
Versatile hot print stamping foil in a roll - O.FOIL NEW UNIVERSAL - 120 m
Foil for hot print stamping on covers and channels. Available colours: gold, silver, white, black, blue, green, maroon. Formats: 90 x 180 mm (for Goldpress 4+, Imagepress and Namepress equipment), 130 x 210 mm (for Goldpress 5 equipment). Package contains 200 pieces.
Foil for gilding in sheets
Versatile hot print stamping foil in a roll - O.FOIL Q&E - 200 sheets

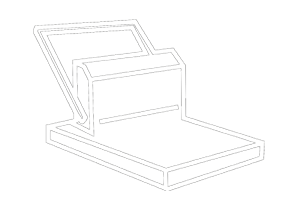

Small, compact and portable but fully professional equipment for top print stamping & embossing custom text and captions on handy books (e.g. notebook, calendars, diaries etc.).
Easy to use equipment, perfect for hot print stamping & embossing for small or larger text and logos, for all types of covers: hard, soft, plastic, leather, textured surfaces.
Professional equipment for hot print stamping & embossing. Perfect for names, titles, thesis books, photo books and much more. The electronic display shows adjustable temperature (up 190 °C), pressure time, pressure force, foil length, height control & counter. With up to 5 tons of pressure the foiling machines are versatile option for small print companies new to foiling or a short run vertical print option for the experienced foiling company with larger machines.
Professional electric hot print stamping machine
Electric hot print stamping machine - OPUS Masterpress 02
Professional electric hot print stamping machine
Electric hot print stamping machine - OPUS Masterpress EMD+
Professional electric hot print stamping machine
Electric hot print stamping machine - OPUS Masterpress EMD Deep
Hot print stamping & embossing module for Atlas 300 mono binding equipment.
Hot print stamping equipment
Hot print stamping module for Atlas 300 mono equipment - OPUS Imagepress|

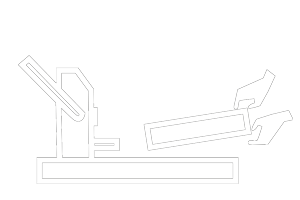

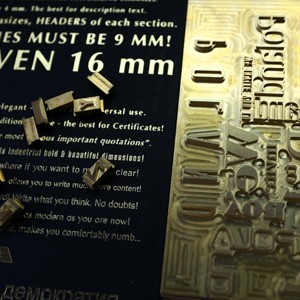

Step 1  Choose with what you want to hot print stamp, matrix or fonts? |

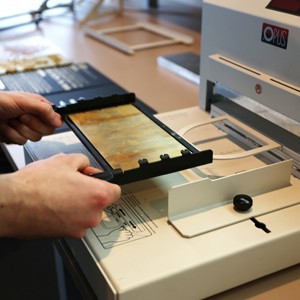

Step 2  If you have chosen matrix then put it into the master frame. |

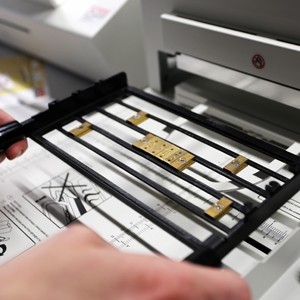

Step 3  If you have chosen fonts then put them into the font frame with proper line height and then put all together to master frame. |

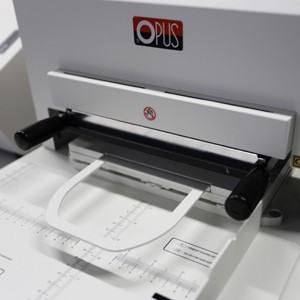

Step 4  Fit master frame onto the equipment heater. |
|

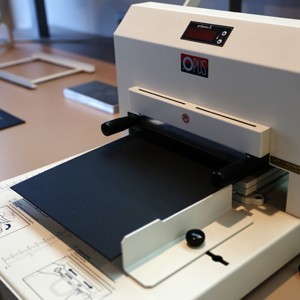

Step 5  Put material on which you want to hot print stamp on (e.g. hard cover from METALBIND or C-BIND system) and put it under the heater |

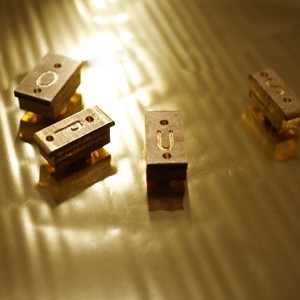

Step 6  Choose your favorite colour and put it on material under the heater. |

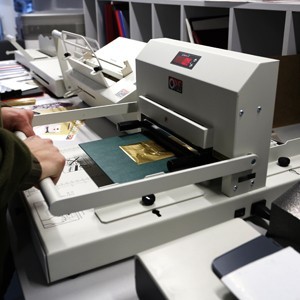

Step 7  Make a hot print stamp. |

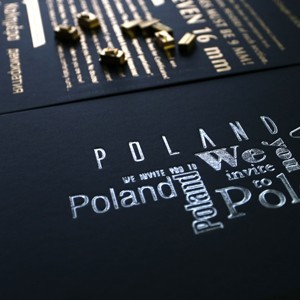

Ready!  You just made your first hot print stamping & embossing |
Tip 1.

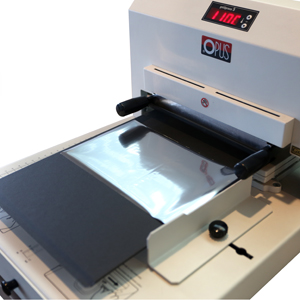

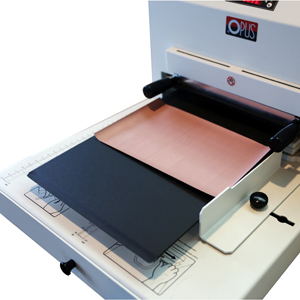

Remember to arrange hot print stamping foil glossy side up (see picture).
If you do it wrong then foil will stick to the matrix or/and fonts (see picture).
Tip 2.

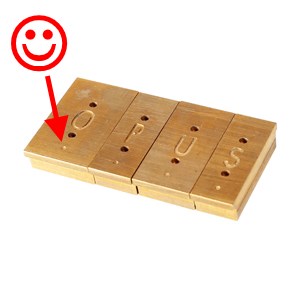

16 mm fonts have two circle gouge which allows you easer transfer and placement of the font and one marker indicating the bottom of the font. Remember that the marker always has to be at the bottom of the font (see picture)!

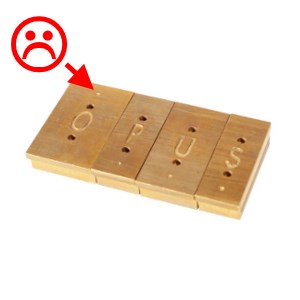

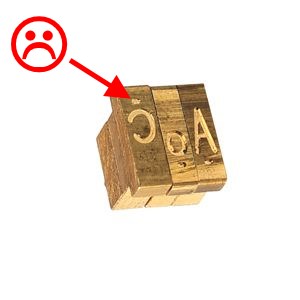

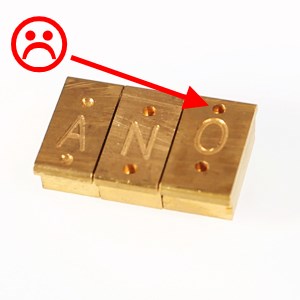

This example shows how the font should not be arranged (see picture).

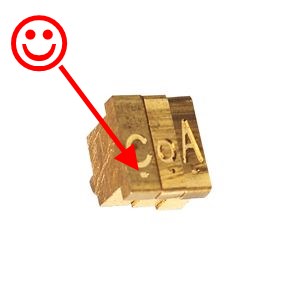

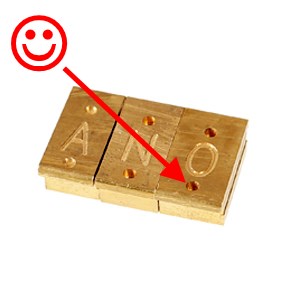

9 mm and 5.5 mm fonts have two circle gouge which allows you easer transfer and placement of the font and no marker. Circle gouge which is closer to edge is indicating the bottom of the font. Remember that the gouge always has to be at the bottom of the font (see picture)!
This example shows how the font should not be arranged (see picture).
4 mm and 3.2 mm fonts have only one marker indicating the bottom of the font. Remember that the marker always has to be at the bottom of the font (see picture)!
This example shows how the font should not be arranged (see picture).
Tip 3.

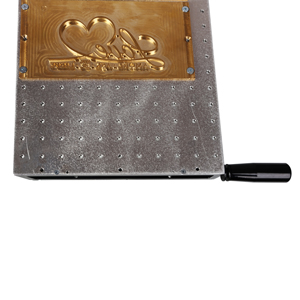

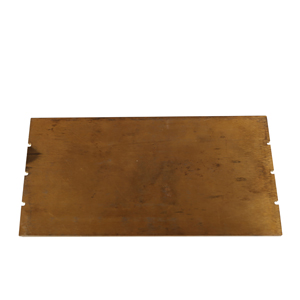

10 mm matrixes need to be fit directly into master frame or font frame (for small matrixes)(see picture).
6 mm matrixes need to be fixed to plate (O.SCREW MATRIX BASE) with the screws or glued to plate (O.MATRIX BASE) with thermal glue (O.MATRIX GLUE) and then fit into master frame (see picture).
Tip 4.

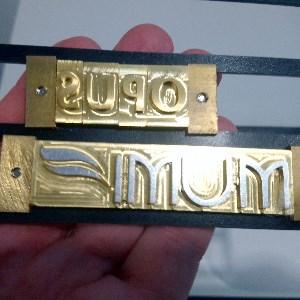

When you are hot print stamping using matrix together with fonts remember to regulate plate lean. Note that fonts usually has bigger depth of penetration.
Tip 5.

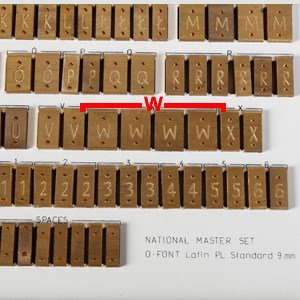

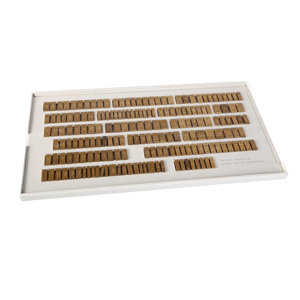

Container help you keep your work with fonts tidy and efficient (see picture).
Marks on containers helps you with finding proper font and puting font back to his place (see picture).
Tip 6.

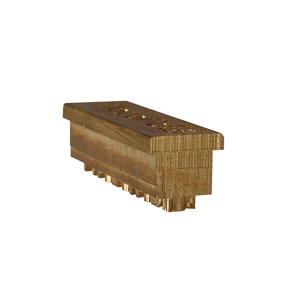

Yes you can use small matrix in lines for fonts but they have to be in specified size and most important matrix need to have special edge for holding it in position (see picture).
