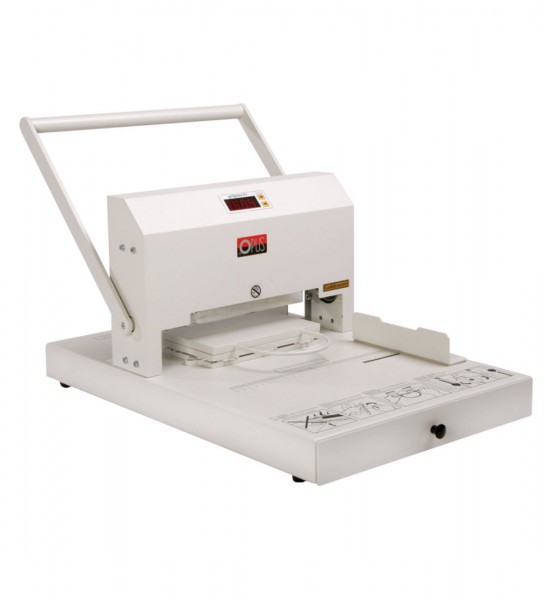

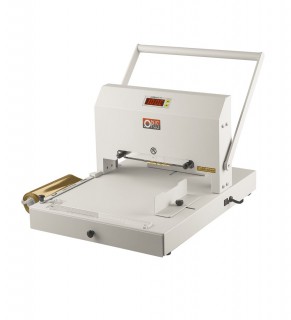

OPUS Goldpress 4+
Hot print stamping equipment used for customizing all types of hard and soft covered presentations with many possibilities. You can also use it for hot print stamping on the METALBIND wrapped metal channels (set sold separately). Available many fonts & matrix frames, typeface styles and foils.
Specification
| Gildin type | matrix |
|---|---|
| Brand | OPUS |
| Maximum matrix size | 50 x 180 mm |
| Temperature regulation range | 50 - 150°C |
| Maximum cover width (without side limiter) | 305 mm |
| Maximum width of the cover (with side limiter) | 265 mm |
| Maximum pressure | 2000 N |
| Force pressing adjustment | no |
| LCD display | yes |
| Stamps couter | yes |
| Automatic film rewinding | no |
| Power supply | 220 - 240 V, 50 / 60 Hz |
| Maximum power consumption | 500 W |
| Rated power | 50 W |
| Net weight | 24,60 kg |
| Gross weight | 26,35 kg |
| Height | 278 mm |
| Width | 362 mm |
| Depth | 546 mm |
| Device warranty | 2 years |
Downloads
-
User guideFormat: .PDF, size: 2.42 MB
-
Data sheet
Format: .PDF
