Professional electric hot print stamping machine

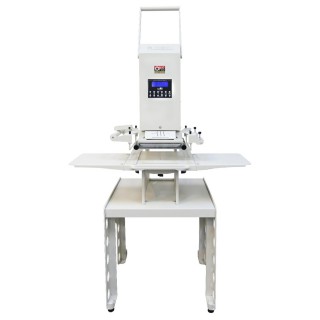

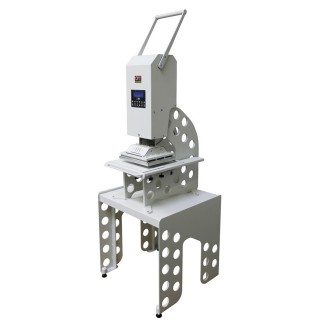

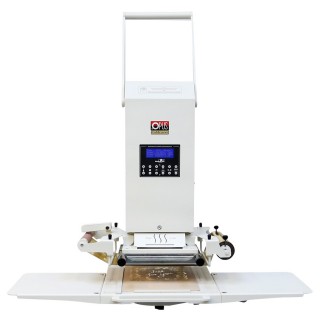

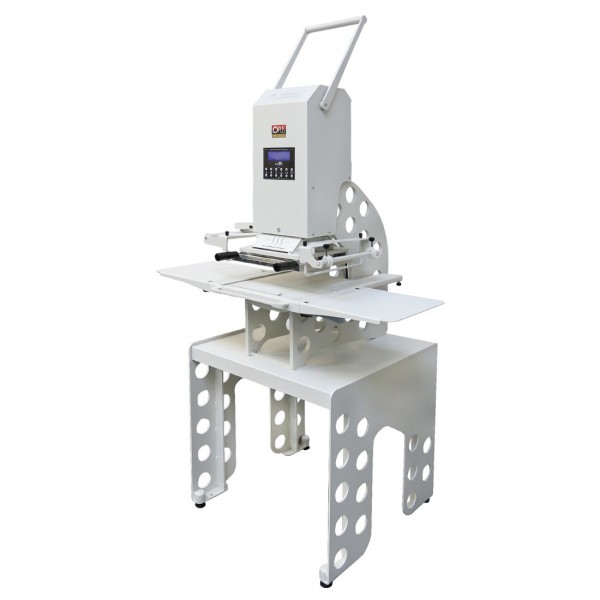

Electric hot print stamping machine - OPUS Masterpress 02
- Catalogue number: 413812
Professional electric hot print stamping machine
Electric hot print stamping machine - OPUS Masterpress 02
0 (0)
- Catalogue number: 413812
OPUS Masterpress 02
The latest solution in the field of professional hot print stamping using matrices and / or fonts. Retractable work table for very comfortable placement and magnetic stops for positioning objects. Automatic calibration allows you to perfectly match the height of the gap above the object. The maximum dimension of the matrix is: 200 x 200 mm.
RECOMMENDED FOR PROFESSIONAL USE.
- Rated voltage: 230 V / 50 – 60 Hz
- Rated current consumption: 3,5 A
- Rated power consumption: 800 W
- Maximum die dimensions: 200 × 200 mm
- Maximum pressure: 5 tons
- Maximum heater stroke: 60 mm
- Temperature regulation range: 30 – 190°C
- Timer adjustment range: 0 – 9 seconds
- The maximum width of the film: 230 mm
- Machine dimensions (H x W x D): 1015 × 820 × 525 mm
- Stand dimensions (H x W x D): 515 × 510 × 490 mm
- Package dimensions (H x W x D): 930 × 540 × 660 mm
- Net weight of the device: 80 kg
- Gross weight of the device: 128 kg
- Net stand weight : 22 kg
MICROPROCESSOR CONTROLLER:
- LCD display
- adjustment of pressing time
- counter (up or down)
- automatic foil rewinding after stamp (value setting in [cm])
FACTORY EQUIPMENT:
- 1 Stand
- 1 Master Frame (for installing matrices or frames for fonts)
Watch movie:
Specification
| Gildin type | matrix |
|---|---|
| Brand | OPUS |
| Maximum matrix size | 200 x 200 mm |
| Temperature regulation range | 30 - 190°C |
| Maximum pressure | 5000 N |
| Force pressing adjustment | yes |
| LCD display | yes |
| Stamps couter | yes |
| Automatic film rewinding | yes |
| Power supply | 230 V, 50 / 60 Hz |
| Maximum power consumption | 2000 W |
| Rated power | 800 W |
| Net weight | 80 kg |
| Gross weight | 128 kg |
| Stand net weight | 22 kg |
| Height | 1015 mm |
| Width | 820 mm |
| Depth | 525 mm |
| Device warranty | 2 years |
Downloads
-
User guideFormat: .PDF, size: 1.79 MB
-
Data sheet
Format: .PDF
