Professional guillotine

Electric-hydraulic guillotine - IDEAL THE 56 LT

  • Catalogue number: 000243

Professional guillotine

Electric-hydraulic guillotine - IDEAL THE 56 LT

Electric-hydraulic guillotine - IDEAL THE 56 LT
  • Catalogue number: 000243
  • print print

Profesjonalna i wyjątkowo bezpieczna gilotyna z hydraulicznym dociskiem, łatwym w obsłudze profesjonalnym panelem dotykowym oraz z "kurtyną bezpieczeństwa" zapewnioną przez wyjątkowo czułe fotokomórki pracujące w podczerwieni.

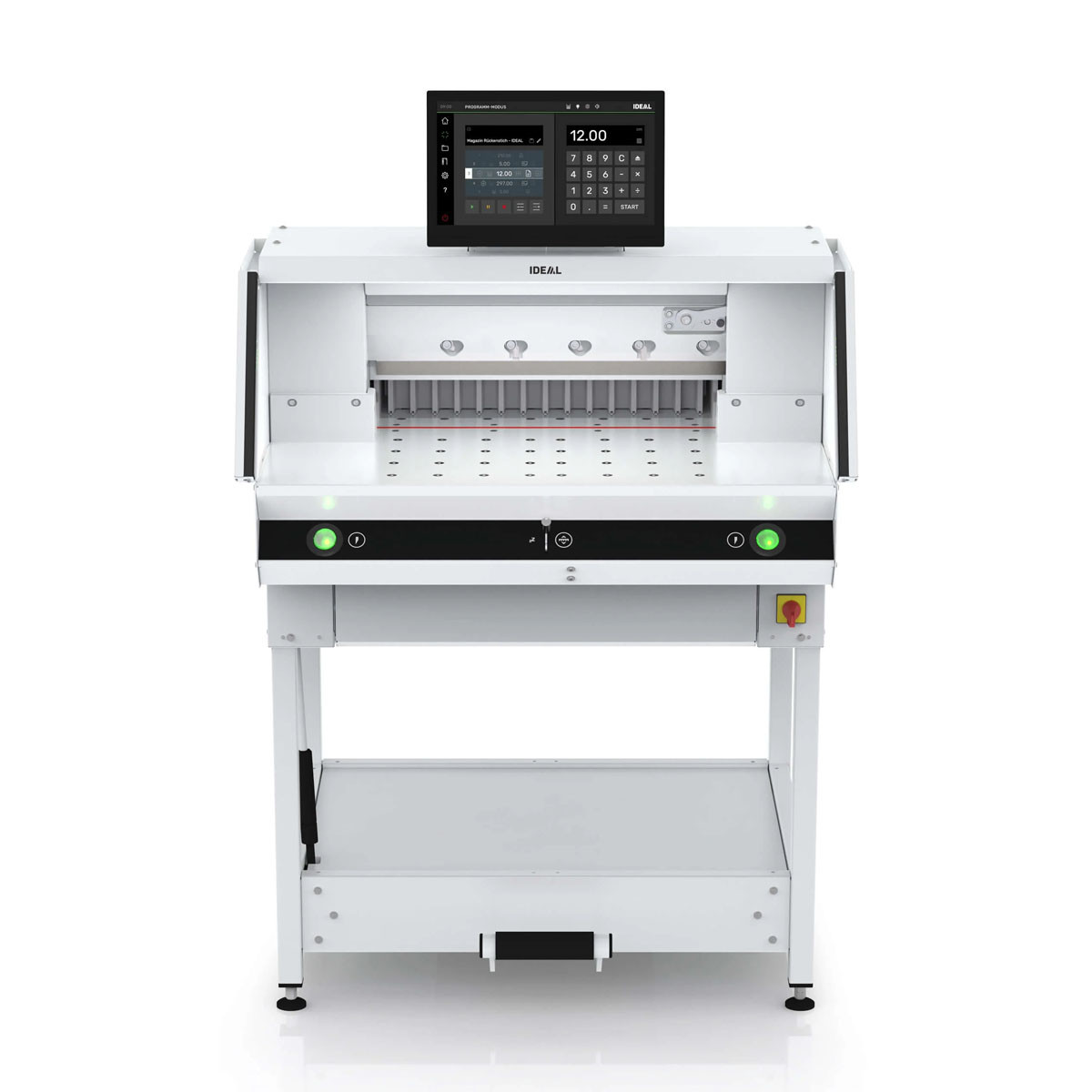

IDEAL THE 56 - prezentacja modelu

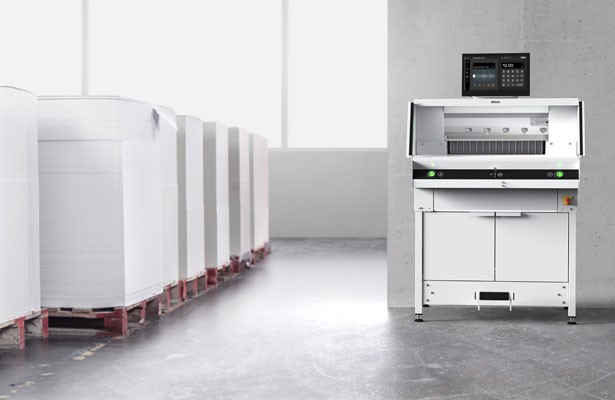

IDEAL THE 56 w biurze - aranżacja

IDEAL THE 56 LT - a new generation electric guillotine with hydraulic pressure

Designed for optimal, maximum efficiency, and always safe operation, it's the ideal solution for printing houses, small print shops, advertising agencies, offices, digital printing houses, copy shops, and anywhere else requiring fast and precise cutting. IDEAL, established in 1951, is synonymous with reliability and the highest quality.

Effortless positioning thanks to the air table.

The innovative air table makes it much easier to position and move stacks of paper. Air is blown through small openings in the table top, creating an air cushion that minimizes the frictional resistance between the stack of paper and the table surface. This means that even large quantities of paper can be handled effortlessly and comfortably.

ideal the 56 lt 615 x 400 px 02 1757922584

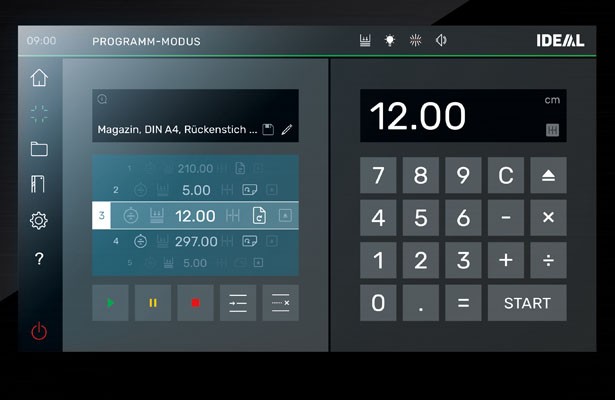

IDEAL THE 56 - panel sterowania

Intuitive operation guaranteed.

The functional graphical user interface enables intuitive control - as easy as on a tablet. The clear main screen with intelligent display ensures maximum user-friendliness. The swivel display can be ergonomically adjusted to suit body size and lighting conditions.

Precision and safety in a double pack.

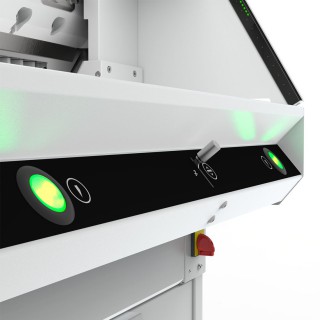

EASY-TOUCH - two-hand blade activating for maximum convenience and safety. Intuitively operated buttons with integrated, illuminated operating status display ensure simple and reliable handling.

IDEAL THE 56 - system SCS

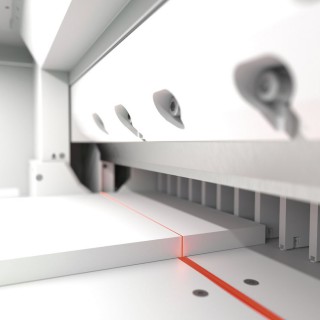

IDEAL THE 56 - laserowy wskaźnik linii cięcia

Precision that shines.

The optical cutting indicator with bright LEDs projects the exact cutting line onto the material, enabling precise cutting according to cutting markings. This function ensures maximum accuracy and efficiency with every cut.

Maximum adaptation to the needs of the paper guillotine (cutter) operator

Adjustable table height, integrated cutter bar replacement function, operator guidance using color signals – many ergonomic functions needed in everyday work.

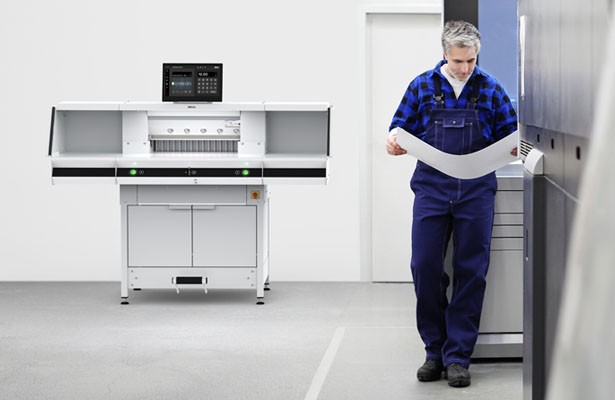

IDEAL THE 56 w pracowni - aranżacja
IDEAL THE 56 w firmie introligatorskiej - aranżacja

THE new, even better series

  • 40% faster clamping and cutting
  • 50% higher maximum clamping pressure
  • 100% faster backguage
  • PIN code restricted access

Specification

Guillotine purposefor professional use
BrandIDEAL
Cutting length560 mm
Maximum cutting thickness80 mm
Narrow cut15 / 60 mm
Table depth560 mm
Cutting knife work typeelectromechanical
Clamp drivehydraulic
Cutting knife power2300 W
Clamp drive powernot applicable
Backgauge power100 W
Net weight310 kg
Gross weight397 kg
Height1523 mm
Width979 mm
Depth1211 mm
Device warranty2 years
Delivery and installation at the customer's premisesAsk a salesperson
Other device parameterselectrically operated backgauge control, infinitely dimmable, switchable optical cutting line with luminous LEDs, control panel with programmer and multi-touch display, automatic hydraulic clamp drive, precisely adjustable pressure force via the control panel, air nozzles for easy carrying large stacks of paper, IR light beam safety curtain
